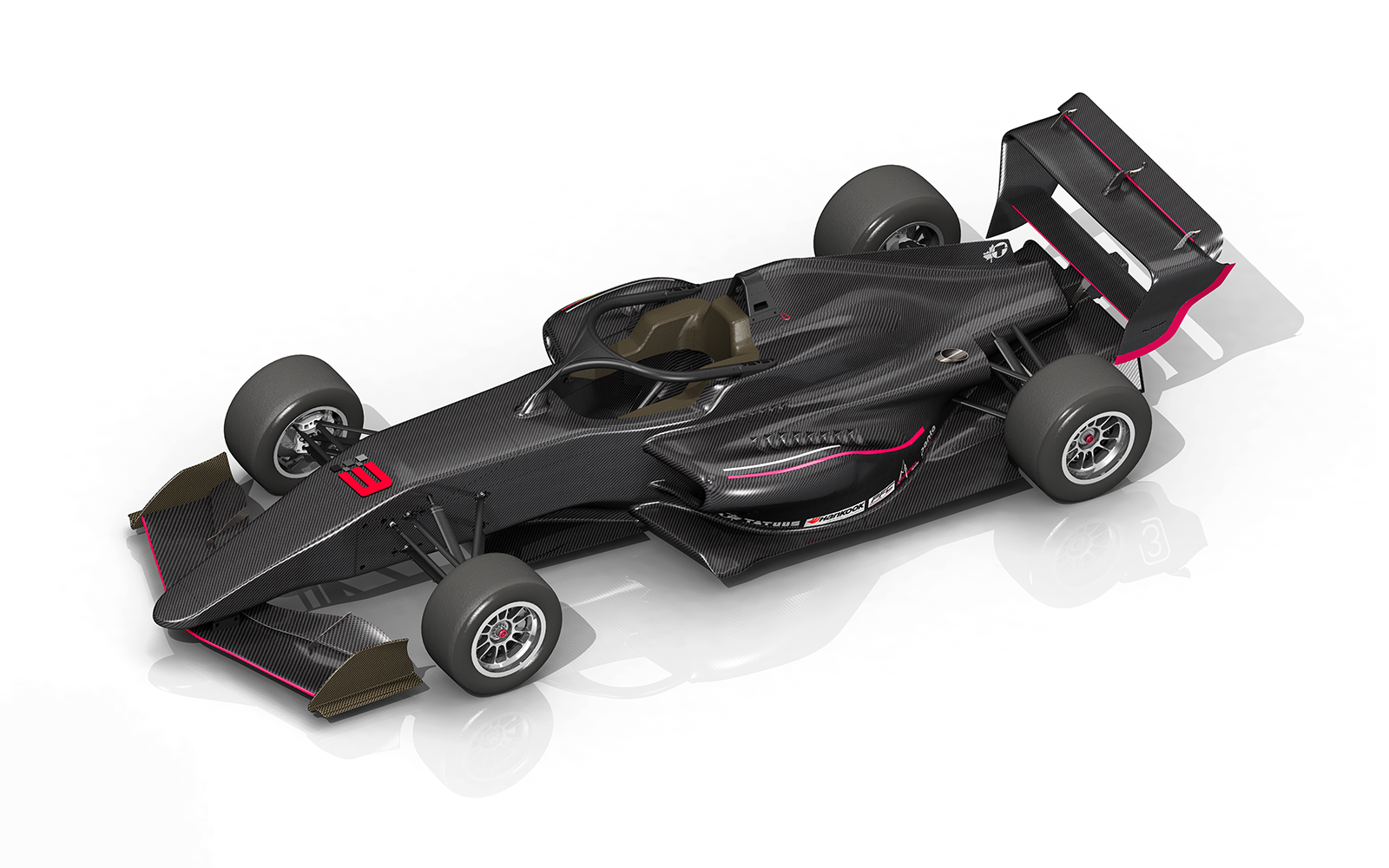

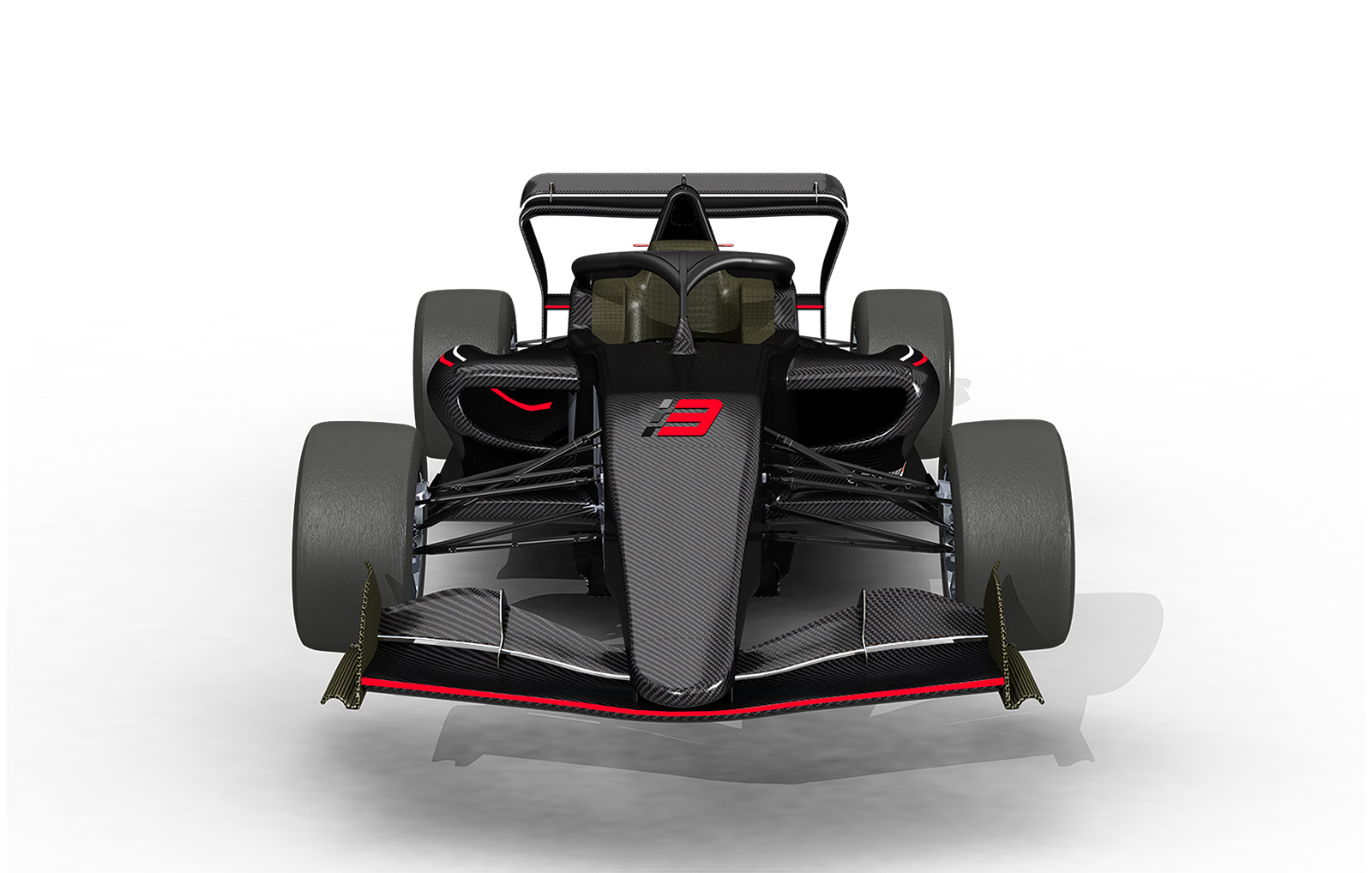

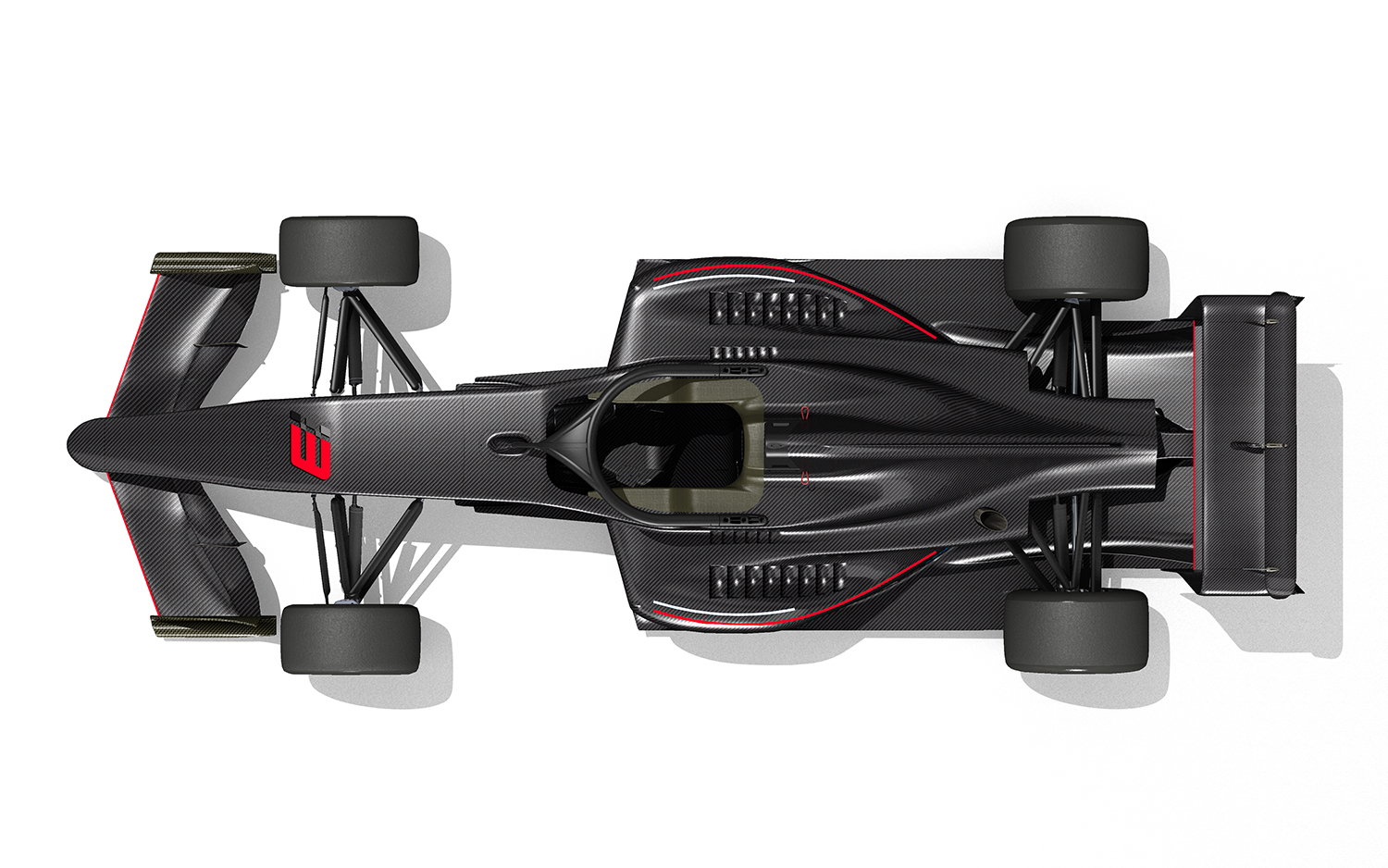

The Car

Dimensions

Overall length: 4855 mm

Overall width: 1850 mm

Wheelbase: 2900 mm

Engine

4 cylinders in line – Turbocharged (Alfa Romeo by Autotecnica Motori)

1750 cc / 4 valves per cylinder
6000 rpm max
270hp + extra 25 hp boost reserved for the push-to-pass system

Monocoque and bodywork

Survival cell: Composite Carbon fiber sandwich with Al/Nomex honeycomb, structure made by TATUUS

Front and rear wing: Carbon structures made by TATUUS

Bodywork: Carbon fiber structures made by TATUUS

Halo TATUUS

Exclusive Aerokit for Eurocup-3 includes:

Sidepods
Front wing kit
Rear wing kit
Intercooler
Battery kit

Gearbox

6-speed longitudinal sequential gearbox.

Electro-hydraulic command via paddle shift from steering wheel.

Non hydraulic ramp differential.

Electronic Features

Magneti Marelli ECU/GCU including data logging system

Suspension

Push-rod / twin damper / spring front and rear by Öhlins

Brakes

4-piston Brembo callipers

PFC Brakes pads and brake discs.

Steering system

TATUUS / Next Solution steering wheel with dashboard, push-to-pass system and gear change paddles.

Tyres

Hankook tyres with following dimensions: 230/560R13 front & 280/580R13 rear.

Camera equipment

Roll hoop camera pre-equipment
